SKU: ZX-532
ZX-532 32 BIT CMOS PARALLEL/SERIAL BOARD
The ZX-532 is a multifunction I/O board suitable for analog and digital control applications. The ZX-532 offers 32 signal condition parallel inputs for digital control. Analog control features up to 12-bit A/Dconversion. Four RS-232 communication ports are available. The ZX-532 features power fail detect with interrupt. This product was developed by Zendex in response to a design request from Intel.
Specifications
- PARALLEL LINES: 32
- SERIAL.PORTS/DEVICE: 4/82C50A RS-232
- INTERRUPTS/DEVICE: 1/8259A
- A/D INPUT RANGE: +10V to -10V
- DATA WIDTH: 8/16
- MULTIBUS: SLAVE
- BAUD RATE: 75-19.2K
- ASYN: YES
- A/D CHANNELS: 8/12-BIT
- CONVERSION TIME/INPUT RANGE: < 100ns/ -5V to +5V
- FULL, DUPLEX: YES
- POWER REQUIREMENTS: +5V @ .470A, +12V @ .090A, -12V @ .090A

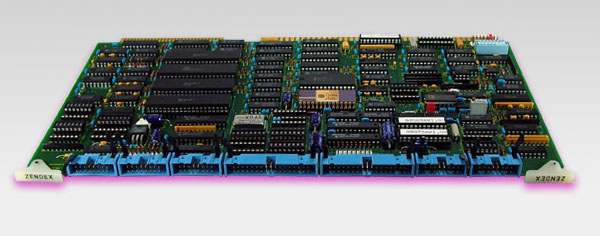

Click on thumbnail for larger image. Call for price.
