SKU: RAD-SBCP5150NT
Model: SBCP5150NT
Manufactured by: RadiSys

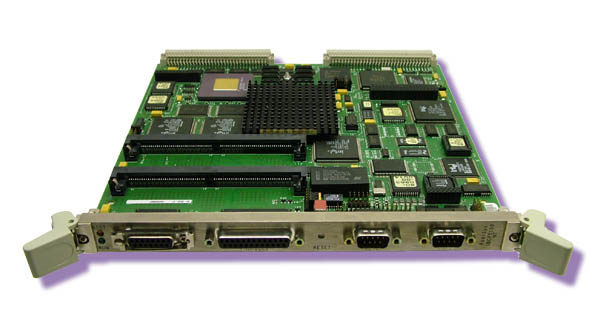

Pentium Based MBII CPU Board (PC Compatable)
Pentium processor operating at 150MHz, with on-chip floating point unit (FPU) and 8KB code and 8KB data cache.
-
256KB synchronous burst mode secondary (L2) cache; 3-1-1-1 clocks
-
Two (4x36 bit) SIMM sites for up to 64MB of DRAM (128MB possible with future DRAM densities).
-
SBC CSM/002 support.
-
Multibus Systems Architecture (MSA) firmware in Intel flash memory.
-
Intel 82430 PCI local bus with PCI-to-Multibus II bridge ASIC
-
Operates in a single MB II slot
-
Two RS-232 serial communication ports and one parallel port on the front panel.
-
Supports up to 2MB of paged flash for MSA and/or embedded applications.
-
Supports up to 1MB of paged flash for BIOS.
-
Intel 82595TX Ethernet controller with 256KB of expansion flash.
-
Two RS-232 serial communication ports, one parallel port, and one AUI Ethernet connector on the front panel.
-
Integrated PCI-based fast SCSI-II, output via the P2 connector, 96-pin, 3-row DIN P2 connector for SCSI
-
Runs Novel UnixWare
-
Runs Windows NT
-
Runs MS-DOS
Click on thumbnail for a larger image. Call for price.
