Multibus-International

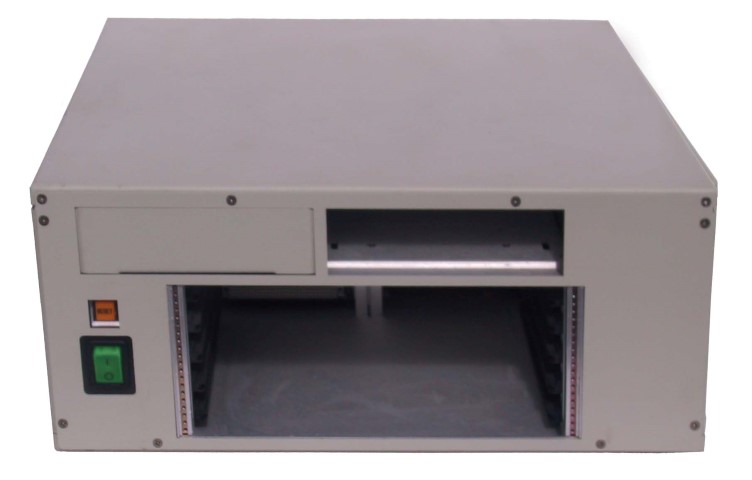

Model: SYP220

Manufactured by: Intel Corporation

• Five slot Multibus II (IEEE/ANSI 1296) Backplane

• 302 Watt Multiple Output Switching Power Supply selectable for 115/230 VAC

• MTBF of the Power Supply is 50,000 hours

• Three 3-1/2" Half Height Drive bays

• Two 5-1/4" Half Height Drive bays with front panel access

• 17.8cm High (4U), 52.1cm Deep and 48.2cm Wide (19")

• Forced Air Cooling with 90 CFM Fan

• Removable Cooling Fan Filter

• Airflow averaging 255 LFM across the slots

• Designed for ease of Service and Maintenance

• Meets International EMI/RFI certification

• Intel Quality and Reliability

Intel's System 220 chassis is designed to provide a high quality, rugged, 19" rack-mountable solution for OEM's developing Multibus II products.  The System 220 also meets the needs of the designers who require a low cost starter kit for a development environment.  Combined with Intel's family of 386, 486 and Pentium processor CPU and I/O controllers, the 5 slot System 220 can be used to build high-performance Multibus II platforms.

Click on thumbnail for larger image. Call for price.
