SKU: INT-MIX560
Model: MIX560
Manufactured by Intel Corporation.
- 82586 LAN Coprocessor operating at 10MHz; 82501 Ethernet Serial Interface
- 64KB of SRAM data buffer for handling communications from the MIX baseboard to the Ethernet Interface
- Support for 128-256KB EPROM
- Firmware contains Built-In-Self-Test code
- LED for 82586 activity
- Serial interface for system console or debug
The MIX560 Ethernet Module combines an 82586 LAN coprocessor, 82501 Ethernet Serial Interface, and 64KB of high speed SRAM data buffer to provide high performance Ethernet Modular Interface eXtension (MIX) I/O capabilities. The MIX560 can be used either in a MIX module stack to provide Ethernet capabilities to a Multibus II MIX I/O server subsystem, or as a single module on the MIX baseboard to provide a high performance MIX-based Ethernet controller. The 82501 is software configurable to either Ethernet V1.0 or IEEE 802.3 (Ethernet V2.0). IEEE 802.3 is the default. The Ethernet interface operates at a fixed rate of 10Mbps An Ethernet station address PROM is also provided.

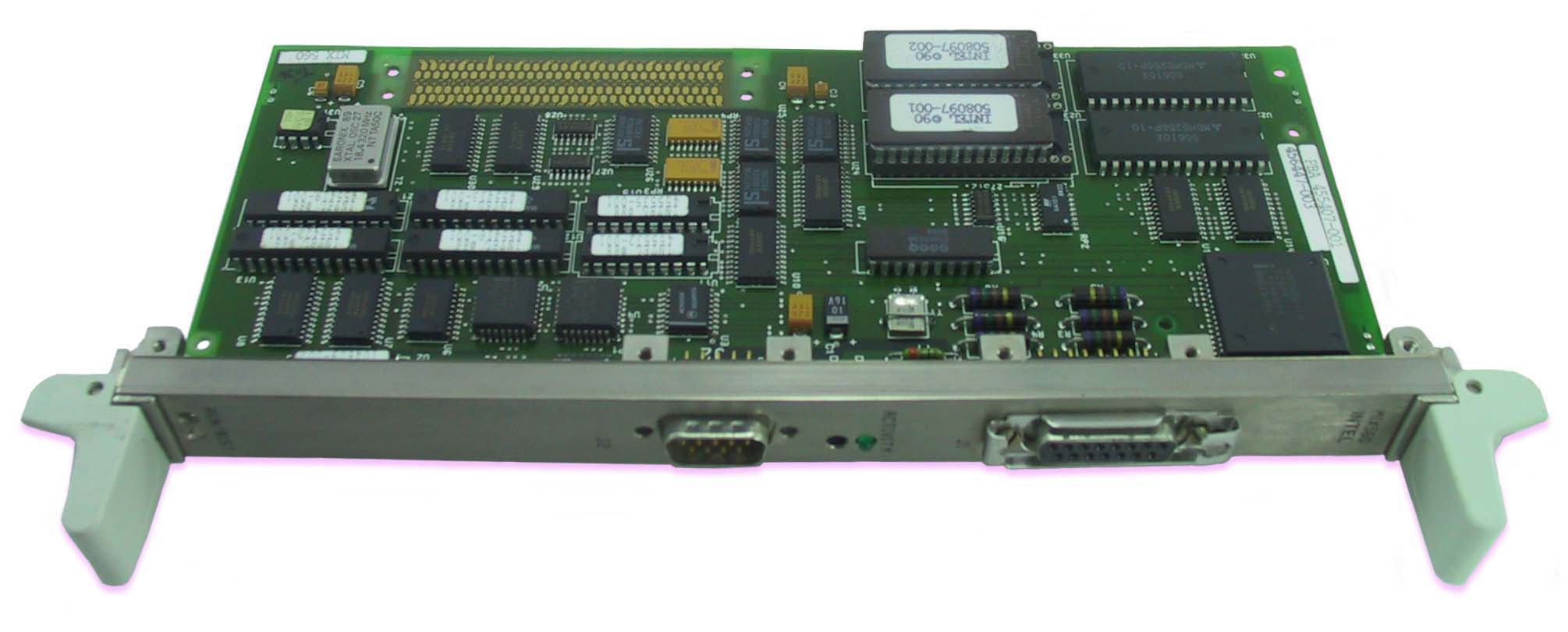

Click on thumbnail to see larger image.
Call for price.
