Multibus-International

Model: MIX486DX33
Manufactured by Intel Corporation.

• Intel486™ SX and Intel486™ DX CPUs running at 33MHz or an IntelDX2™ running at 66MHz
• 33MHz baseboard bus speed
• 2 SIMM sockets which will accept up to 32MB DRAM using Industry Standard SIMMS (70ns)
• 128KB L2 Cache with parity
• 82C258 Advanced DMA (ADMA) controller operating at 16.5MHz
• Integrated DMA address generator logic (DAG compatible) for 32-bit address range
• MIG compatible MIX control logic
• Order MIXSC10 for ten MIX stacking connectors

Intel’s MIX486 baseboard combines increased CPU performance with increased internal bus speed and improved DMA performance for increased throughput.  The baseboard is available with Intel486SX, Intel486DX or Intel486DX2 microprocessors, operates at a bus speed of 33MHz and is compatible with Intel’s earlier MIX baseboards.  On-board memory is expandable to up to 32MB of DRAM using industry standard SIMMs (70 ns). The CDC provides all the control functions to implement a 128KB secondary (L2) cache with parity.

This baseboard can be used with a number of MIX Modules listed elsewhere, such as the MIX232, MIX422, MIX450, MIX560, etc.

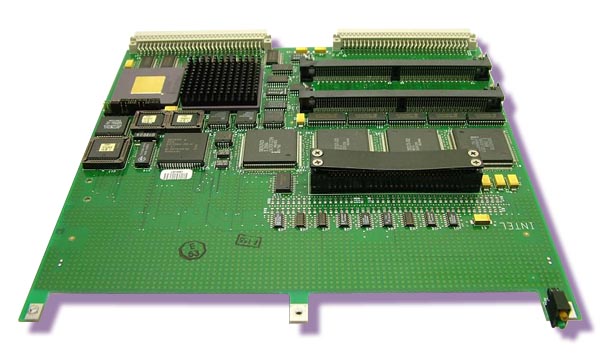

Click on thumbnail to see larger image.

Call for price.
