Multibus-International

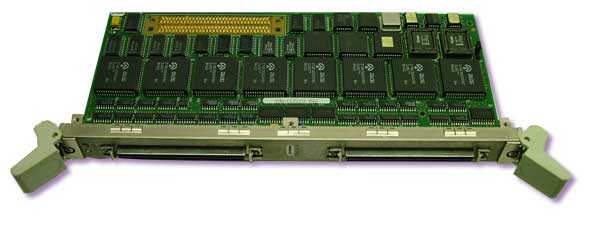

Model: MIX422

Manufactured by: Intel Corp.

• Supports RS-422 electrical, and RS-449 and X.21 physical interface protocols
• Synchronous and asynchronous serial communications up to 2Mbps
• 8 full-duplex, full-connectivity serial ports per module
• Each channel supported by Zilog Z16C32 integrated universal serial controller (IUSC) with individual 16MHz DMA controllers
• Full hardware and software support for HDLC/SDLC, SNA, Bisync/Async, and X.25
• X.25 software drivers provided as a standard feature of RMX III operating system
• 2 100-pin general purpose synchronous (GPSYNC) shelded connectors on the front panel
• Cables with 37 way D-type RS422 connectors are available

The MIX422 module in an 8-channel high-speed synchronous communications controller designed for applications requiring rapid data acquisition and transmittal.  Each of the eight independent Wide Area Network (WAN) channels is coupled with a dedicated integrated universal serial controller (IUSC) for full-duplex data exchanges.  Data rates are enhanced by two full-capacity 16MHz DMA channels in each IUSC.

The MIX422 is compatible with the RS-422 electrical specification and supports both the RS-449 and X.21 physical layer communications protocol.  It is designed to sustain full-duplex data rates up to T-1 and E-1 speeds (1.544Mbps and 2.048Mbps respectively).  The MIX422 module can be stacked to a maximum level of three modules for up to 24 channels on each MIX baseboard.

Click on thumbnail to see larger image.
Call for price.
