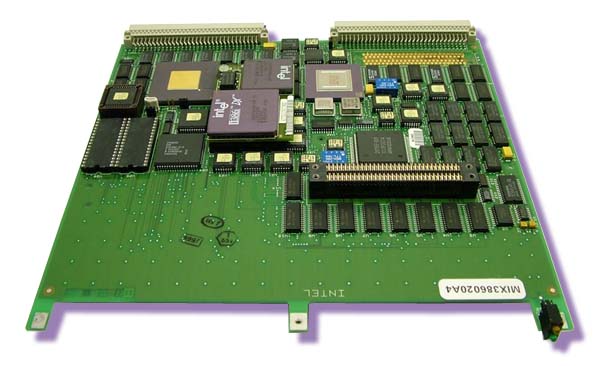

SKU: INT-MIX386020A4
Model: MIX386020A4
Manufactured by Intel Corporation
- 20MHz Intel 386 CPU or an Intel 486 CPU Module
- 4 Mbytes of on-board, fast-page DRAM with parity checking
- Up to 64 Mbytes of additional DRAM using SBCMMxxFP memory modules
- MIX386020A only, Intel387 math support by installing SBC387 MX Math Module
- Multibus II parallel system bus (PSB) that is compatible with the IEEE bus standard 1296 including:
- 32-bit address and data bus
- Full message passing support via the 10MHz message passing coprocessor (MPC) including solicited burst transfers up to 22.2 Mbytes/s
- Direct memory addressing to the first through third gigabyte spaces in memory
- Direct I/O addressing above 8 Kbytes.
- 12.0MHz 87C51 interconnect microcontroller
- Standard interconnect space support, including and LED for the built-in self tests (BISTs)
