SKU: INT-MIX3860201
Model MIX3860201
Manufactured by Intel.
-

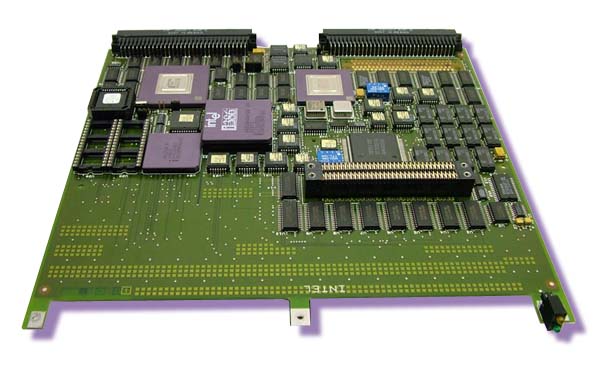

MIX BASEBOARD 20MHz 386, 8MHz ADMA
-
20MHz Intel 386 CPU or and Intel 486 CPU Module
-
1 MB of on-board, fast-page DRAM with parity checking
-
Up to 64 Mbytes of additional DRAM using SBC MMxxFP memory modules
-
MIX386020A only, 387 math support by installing SBC387 MX Math Module
-
Multibus II parallel system bus (PSB) that is compatible with the IEEE bus standard 1296 including:
-
32-bit address and data bus
-
Full message passing support via the 10MHz message passing coprocessor (MPC) including solicited burst transfers up to 22.2 Mbytes/s
-
Direct memory addressing to the first through third gigabyte spaces in memory
-
Direct I/O addressing above 8 Kbytes.
-
12.0MHz 87C51 interconnect microcontroller
-
Standard interconnect space support, including and LED for the built-in self tests (BISTs)
(Ref. MIXGA5-001)
