MIX 232


SKU: INT-MIX 232

Model MIX 232
Manufactured by Intel



  • Supports RS-232 electrical and physical interface communications protocol
  • Synchronous and asynchronous serial communications up to 64Kbps
  • 8 full-duplex, full-connectivity serial ports per module
  • Each channel supported by Zilog Z16C32 integrated universal serial controller (IUSC) with individual 16MHz DMA controllers
  • Full hardware and software support for HDLC/SDLC, SNA, Bisync/Async, and X.25
  • X.25 software drivers provided as a standard feature of RMX III operating system
  • Two 100-pin general purpose synchronous (GPSYNC) shielded connectors on the front panel
  • Cables with 25 way D-type RS-232 connectors are available

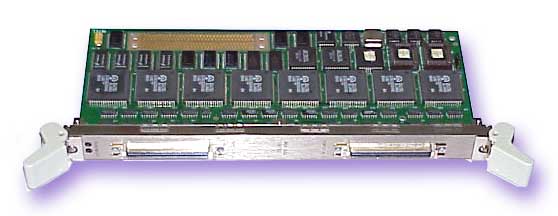

The MIX232 module is an 8-channel high-speed synchronous and asynchronous communications controller designed for applications requiring rapid data acquisition and transmittal.  Each of the eight independent Wide Area Network (WAN) channels is coupled with a dedicated integrated universal serial controller (IUSC) for full-duplex data exchanges. Data rates are enhanced by two full-capacity 16MHz DMA channels in each IUSC.



The MIX-232 is compatible with the RS-232 electrical specification and physical layer communications protocol.  It is designed to sustain full-duplex synchronous and asynchronous data rates up to 64Kbps.  The MIX-232 module can be stacked to a maximum level of three modules for up to 24 channels on each MIX baseboard.

Click on thumbnail to see larger picture.

Call for price.
