SKU: INT-CH541
Model: CH541
Manufactured by: Intel Corporation
20-Slot Multibus II (IEEE/ANSI 1296) backplane
-
EIA, 19-inch rack standard with provision for slidemounting. Fits 24< rack
-
Heavy duty bus bars for negligible IR drop across card cage under maximum loading
-
750 Watt multiple output switching power supply. Jumper selectable 115/220 VAC
-
Certified to UL, CSA, and TUV safety agency requirements
-
High-volume and uniform cooling air flow across all card positions (250+ LFM). Air flow highly independent of adjacent equipment
-
Front panel reset switch and power indicator
-
Built-in P2 power connection points
-
P2 backplane at Slot 0 provides "Reset" Remote Diagnostics Serial Port Interface (RSPI) functions and I/O connections
-
Unrestricted area behind P2 backplane for user I/O configuration
Alternate Part number: CH541C20R

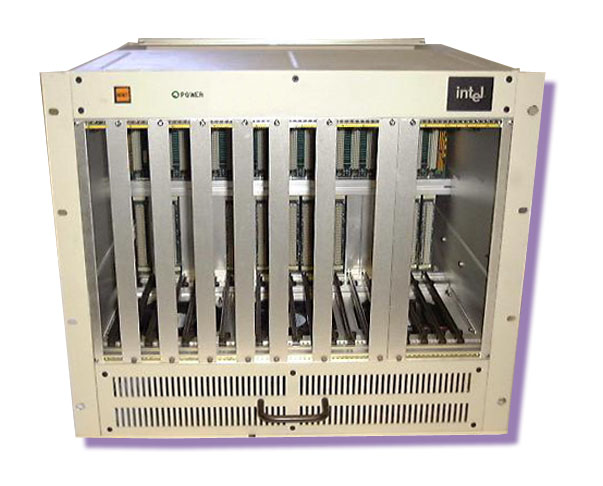

Intel's 20-slot 541 chassis provides a basic platform for the integration of large capacity systems. The CH541's modular packaging allows for integration into standard 19-inch rack-mount cabinets and fits in a 24-inch deep rack. Each CH541 chassis is compactly built, ruggedly constructed, and features superior Intel quality and high reliability.
