SBX586

SKU: INT-SBX586



Model: SBX586

Manufactured by: Intel Corporation

Provides an IEEE 802.3 (Ethernet) Data Link Connection

Based on Intel’s 8 MHz 82586 LAN Coprocessor Chip, featuring



  • Automatic Retransmission

  • On-Board Multicast Address Filtering

  • Host Interface via Buffer Chaining

  • 16KB of Local Dual-Ported Buffer RAM

  • Single-wide SBX Board

  • Compatible with INA 960 ISO Transport Layer Software with

  • Direct Support for RMX Operating Systems

  • Source Code Support for other Operating Systems



The SBX586 Ethernet Data Link Engine is a single wide SBX card that provides a low-cost Ethernet controller for single board computers with 16-bit SBX bus capability.  Based on the 82586 Local Area Network Coprocessor, the SBX586 implements the data link (Layer 2) and physical (Layer 1) layers of the International Standards Organization (ISO) Open Systems Interconnect (OSI) reference model.  This allows the SBX586 to supply an IEEE 802.3 10Mbps (Ethernet) connection.

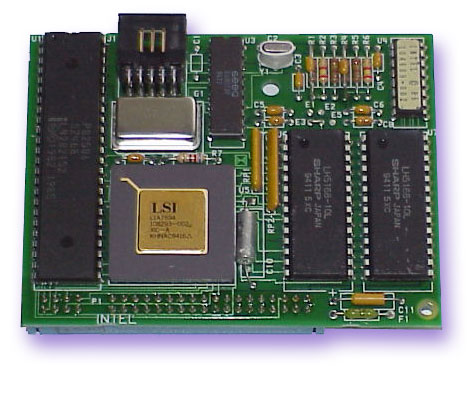

Click on thumbnail for a larger image. Call for price.
