Multibus-International

Model: SBX488

Manufactured by: Intel Corporation

Complete IEEE 488-1978 Talker/Listener Functions including

• Addressing, Handshake Protocol,

• Service Request, Serial & Parallel

• Polling Schemes

• Complete IEEE 488-1978 Controller Functions including

• Transfer Control, Service Requests, and Remote Enable

• Simple Read/Write Programming

• Software Functions built into VLSI hardware for high performance, low-cost and small size

• IEEE 488-1978 Standard Electrical Transceivers

• Five Volt Only Operation

The SBX488 GPIB Talker/Listener/Controller board provides a standard interface to the numerous instruments and computer peripherals that use the IEEE 488-1978 General Purpose Instrumentation Bus (GPIB). By taking full advantage of Intel's VLSI technology, the single-wide SBX488 board implements the complete IEEE 488-1978 Standard Digital Interface for Programmable Instrumentation on a single low-cost board.  The SBX488 board includes the 8291A GPIB Talker/Listener, an 8292 GPIB Controller, and two 8293 GPIB Transceiver devices.  A simple user programming interface for easy reading, writing, and monitoring of all GPIB functions is provided.  This intelligent interface minimizes the impact on host processor bandwidth.

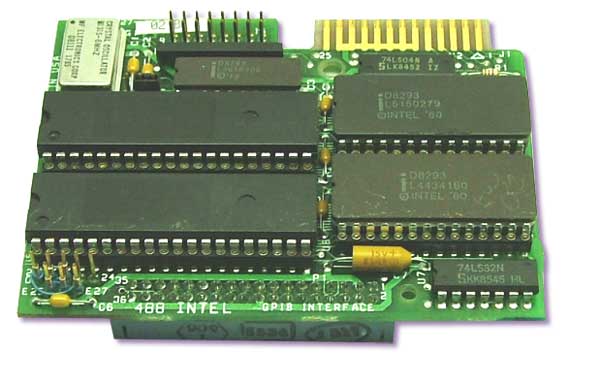

Click on thumbnail for a larger image. Call for price.
