SBX275

SKU: INT-SBX275



Model: SBX275

Manufactured by: Intel Corporation

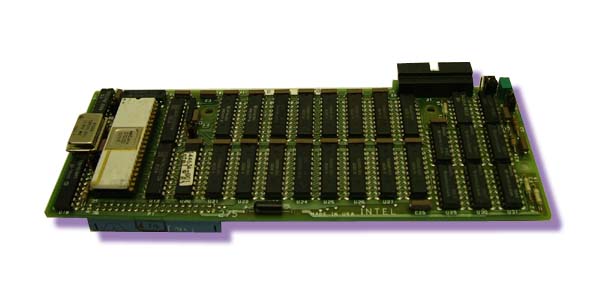

Complete video graphics display controller on a SBX MULTIMODULE board



  • Interfaces to either black and white or color raster scan display monitors

  • 50Hz or 60Hz frame rater operation

  • On-board refresh memory supports 512 x 512 black and white or 256 x 256 eight color display resolution

  • High level drawing commands include line, arc, circle, rectangle, character, area fill, pan and scroll

  • Includes Intel's 82720 Graphic Display Controller

  • Compatible with industry standard SBX bus interface

  • Light pen interface



The SBX275 Video Graphics Controller (VGC) allows the user to add high level video display capability to his/her computer system with minimal cost and effort.  The SBX275 module provides a completely self-contained bit-mapped graphics subsystem on a 3" x 7" SBX MULTIMODULE board.  This same subsystem supports either black and white or eight color displays.



In addition, SBX275 VGC off-loads the system CPU from many of the graphics drawing functions.  Under the control of the Intel 82720 Graphics Display Controller (GDC), the SBX275 directly supports high level drawing commands which includes lines, arcs, circles, rectangles, characters, area fill, pan and scroll.



The SBX275 MULTIMODULE board is compatible with any computer board or system product supporting the industry standard SBX bus; this includes most board and system products from Intel.  Applications for the SBX275 VGC include video displays for industrial operator stations, engineering work stations, videotex, business presentation systems and other information display systems.



Click on thumbnail for a larger image. Call for price.
