Multibus-International

Model: SBX270

Manufactured by: Intel Corporation

Complete video display controller on a double-wide SBX MULTIMODULE board

• Interfaces to either black and white or color display monitors

• Displays 7 x 9, 5 x 7 or 6 x 8 character fonts

• High level software interface via a pre-programmed 8041A UPI

• Interchangeable character fonts available in EPROM

• Keyboard and light pen interface provided on-board

• 50 Hz or 60 Hz frame rate operation

• Provides cursor control, reverse video, blinking, underline, highlight and page or scroll mode

• Compatible with all 8/16 bit SBC boards which support the Intel SBX bus

• Graphics capability via pre-defined graphic character fonts

The SBX270 Video Display Controller (VDC) is a complete video controller on a standard double wide Intel SBX MULTIMODULE board.  Providing either black and white (B&W) or eight-color displays, the SBX270 VDC brings alphanumeric video control to the SBX bus.  Any computer board or system supporting the Intel SBX MULTIMODULE bus is compatible with the SBX270 VDC, including most board and system products from Intel.  Additionally, the SBX270 VDC supports keyboard and light pen I/O on-board; this simplifies the design of intelligent terminals

The SBX270 module allows the user to add high level video display capability to his/her computer system with minimal cost and effort.  Typical applications for the SBX270 VDC include video displays for industrial operator stations, word processing systems, data base management products and many other uses.

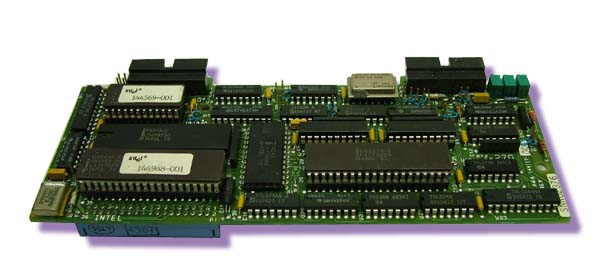

Click on thumbnail for a larger image. Call for price.
