SBX218

SKU: INT-SBX218



Model: SBX218

Manufactured by: Intel Corporation



  • Controls most single/double density, single/double sided disk drives

  • Phase lock loop data separator assures data integrity

  • User programmable drive parameters allow wide choice of drivers

  • Double-width module

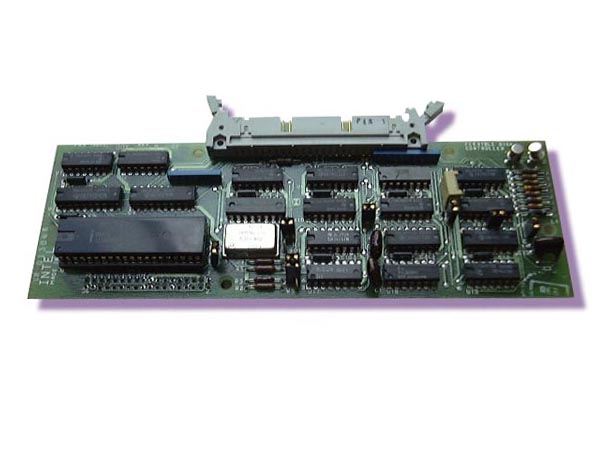

The SBX218, which mounts easily on any SBC board that has an IEEE 959 SBX I/O Expansion Bus connector, provides low cost control of 5.25" disk drives.  Up to 4 drives can be supported.  The maximum capacity disk or disk drive size (formatted) is 1MB. Maximum power requirements +5V are 1.7 A.



Click on thumbnail for a larger image. Call for price.
