Multibus-International

Model: SBCP5090ISE

Manufactured by: Intel Corporation

Pentium processor operating at 90MHz, with on-chip floating point unit (FPU) and 8KB code and 8KB data cache

• 256KB synchronous burst mode secondary (L2) cache; 3-1-1-1 clocks

• Intel 82595TX Ethernet controller

• Integrated PCI-based Fast SCSI-II, output via the P2 connector

• 2 (4x36 bit) SIMM sites for up to 64MB of DRAM

• Operates in a single MBII slot

• 2 RS-232 serial communication ports and 1 parallel port on the front panel

• Supports up to 2MB of paged Flash for MSA and/or embedded applications

The SBCP5090ISE board is Intel’s top-performing high-integration single board computer.  Available with a 90MHz Pentium processor, the SBCP5090ISE board is designed to operate in a single Multibus II slot.  PCI (Peripheral Component Interconnect) is utilized as an on-board local bus for maximum performance and integration.  Ethernet and SCSI-II are standard features, providing increased I/O flexibility.

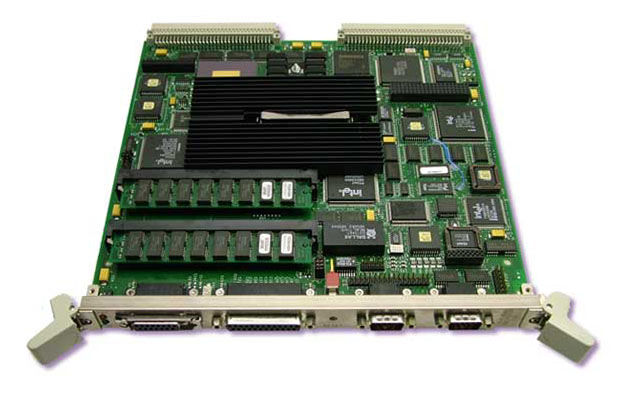

Click on thumbnail for a larger image. Call for price.
