SBCP5090

SKU: INT-SBCP5090



Model: SBCP5090 & SBCP5090V

Manufactured by: Intel Corporation



Pentium processor operating at 90MHz, with on-chip floating point unit (FPU), 8KB code and 8KB data cache

( SBCP5090V includes the SBCPCIM64A VGA video adapter)

  • 256KB synchronous burst mode secondary (L2) cache; 3-1-1-1 clocks

  • 4(4x36bit) SIMM sites for up to 128MB of DRAM

  • Intel 82430 PCI local bus with PCI-to-Multibus II bridge ASIC

  • Integrated PCI-based fast IDE and fast SCSI-II

  • PCI-based 64-bit graphics module available

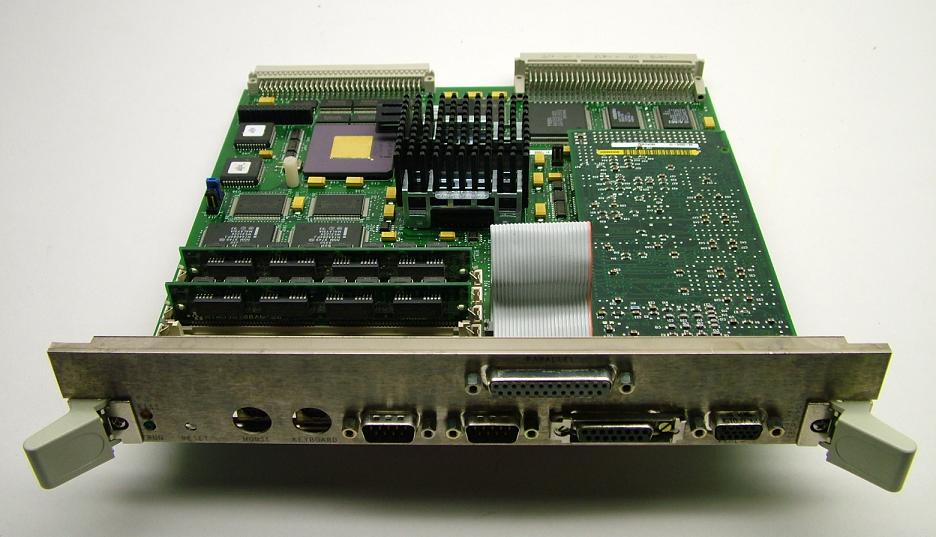

The Multibus II PC-Compatible board combines the power of Intel’s Pentium processor with the speed of the PCI local bus in a single board computer designed for maximum performance and integration.  The Multibus II Architecture, coupled with high-end computer graphics, integrated I/O, and PC software, provides system designers with an unmatched 64-bit solution for multiprocessing applications.



Click on thumbnail for a larger image. Call for price.
