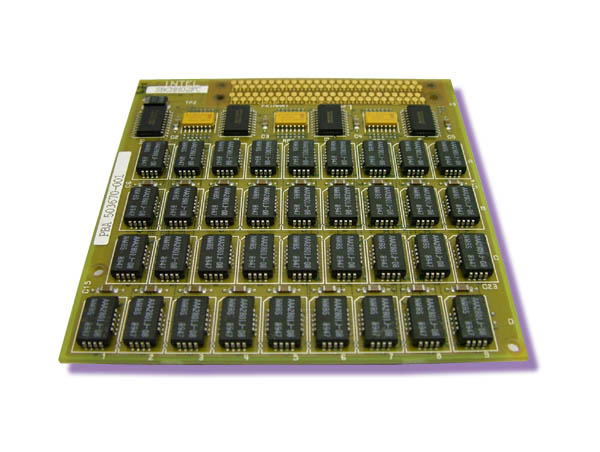

SBCMM02FC

SKU: INT-SBCMM02FC



Model: SBCMM02FC

Manufactured by: Intel Corporation



  • Provides SMT Memory Expansion for Intel's SBC486/125 and SBC486/150 boards

  • Available in 1M, 2M, 4M and 8M Byte Sizes

  • 32 Bits Wide with Byte Parity

  • Stackable to Provide up to 32M Bytes

  • Supports 32-Bit, 16-Bit and 8-Bit Data Paths

  • Supports Independent Read/Writes

  • Easily Installed



The SBCMM0x DRAM memory modules are members of Intel's complete line of SBC memory and I/O expansion boards.  The MM-Series of memory modules use a dedicated interface to maximize CPU/memory performance.  The SBC MM series of memory modules have been designed to provide both the on-board and expansion memory for the SBC486/125 and SBC486/150 boards.



The modules contain (respectively) 1M byte, 2M, 4M and 8M bytes of read/write memory using surface mounted DRAM components. Supports 32-Bit, 16-Bit and 8-Bit Data Paths.



Due to the high speed interface of the memory modules, they are ideally suited in applications where memory performance is critical.



Click on thumbnail for a larger image. Call for price.
