Multibus-International

Model: SBCMEM/128

Manufactured by: Intel Corporation

• 128MB of Dynamic RAM (DRAM)

• 32-bit PSB Bus Replier Interface

• 200 ns Read Access Time

• Byte Parity Error Detection

• Interconnect Space Support for Identification, Configuration, and Diagnostics

• Standard Eurocard Form Factor

• Occupies Only One Slot

• All Control Signals, Power and Ground supplied via the PSB 96-pin DIN Connector (PI)

• Initialization Checks run automatically at Power-up

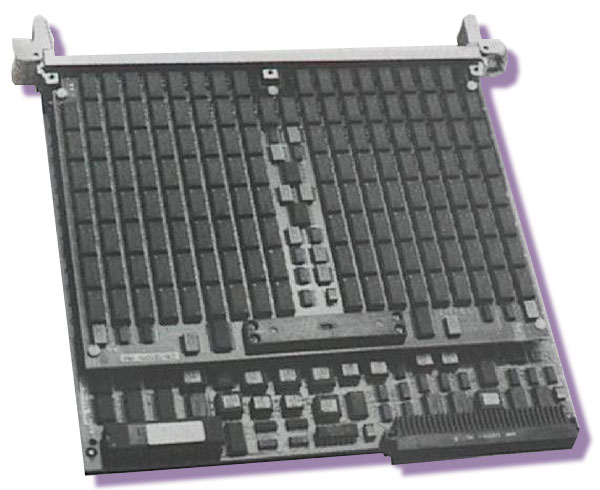

The SBCMEM/128 is a one-slot, full-size Multibus II board with 128MB of DRAM.  It is made up of a mother board which provides the bus interface and 64MB of DRAM, and a daughter board which contains the other 64MB of DRAM.  The boards are connected via a 100-pin surface mount connector, and are functionally one unit.  Board configuration is accomplished via interconnect space over the PSB bus.

Alternate Part Number: SBCMEM128
