Multibus-International

Model: SBCCSM/001

Manufactured by: Intel Corporation

• Integrates Multibus II Central System Functions on a Single Board

• Multibus II Parallel System Bus Clock Generation for all Agents Interfaced to the Multibus II PSB Bus

• Multibus II Interconnect Space for Software Configurability and Diagnostics

• System-wide Rest Signals for Power-up, Warm Start, and Power Failure/Detection

• System-wide Time-out Detection and Error Generation

• Built-in-Self-Test (BIST) Power-up Diagnostics with LED Indicator and Error Reporting Accessible to Software via Interconnect Space

• Slot I.D. and Arbitration I.D. Initialization

• General Purpose Link Interface to other Standard (Multibus I) or Proprietary Buses

• Time-of-Day Clock Support with Battery Back-up On-board

The SBCCSM/001 Central Services board is responsible for managing the central system functions of clock generation, power-down and reset, time-out, and assignment of I.D.s defined by the Multibus II specification.  The integration of these central functions improves overall board area utilization in a multi-board system since these functions do not need to be duplicated on every board.  The SBCCSM/001 board additionally provides a time-of-day clock and general purpose link interface to other standard (Multibus I) or proprietary buses.

Alternate Part Number: SBCCSM001

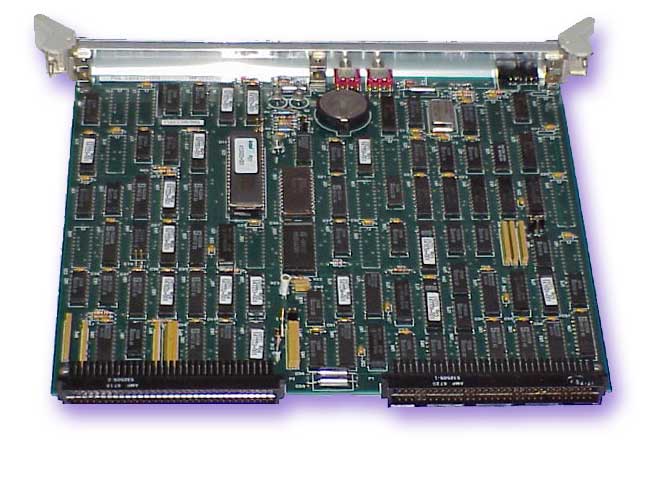

Click on thumbnail for a larger image. Call for price.
