Multibus-International

Model: SBC86/05A

Manufactured by: Intel Corporation

iAPX 86/10 (8086-2) microprocessor with 5 or 8MHz CPU clock

Software Compatible With 8086, 8088, 80186, 80286 Based 16-Bit Single Board Computers

Optional iAPX 86/20 numeric data processor with SBC337 MULTIMODULE™ Processor

8KB of Static RAM; Expandable On-Board to 16KB

Sockets for up to 256KB Of JEDEC 24/28-Pin Standard Memory Devices; Expandable On-Board To 512KB

2 SBX Bus Connectors

Programmable Synchronous/Asynchronous RS232C Compatible Serial Interface with Software Selectable Baud Rate

24 Programmable Parallel I/O Lines

Two Programmable 16-Bit BCD Or Binary Timers/Event Counters

9 Levels of Vectored Interrupt Control, Expandable to 65 Levels

The SBC86/05A Single Board Computer takes full advantage of Intel's technology to provide economical, self-contained, computer-based solutions for OEM applications.  The CPU, system clock, read/write memory, Nonvolatile read only memory, I/O ports and drivers serial communications interface, priority interrupt logic and programmable timers all reside on the board.  The large control storage capacity makes the SBC86/05A board ideally suited for control-oriented applications such as process control, instrumentation and industrial automation.

Alternate Part Number: SBC8605A

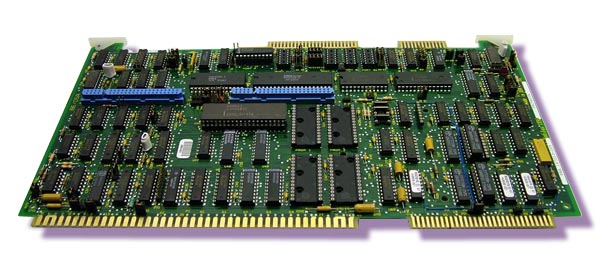

Click on thumbnail for larger image. Call for price.
