SBC86/05

SKU: INT-SBC86/05

Model: SBC86/05

iAPX 86/10 (8086-2) microprocessor with 5 or 8MHz CPU clock

Fully software compatible with SBC86/12A single board computer

Optional iAPX 86/20 numeric data processor with SBC337 MULTIMODULE™ Processor

8K bytes of static RAM; expandable on-board to 16K bytes

Sockets for up to 64K bytes of JEDEC 24/28-pin standard memory devices; expandable on-board to 128K bytes

Two iSBX™ bus connectors

24 programmable parallel I/O lines

Programmable synchronous/asynchronous RS232C compatible serial interface with software selectable baud rates

Two programmable 16-bit BCD or binary timers/event counters

9 levels of vectored interrupt control, expandable to 65 levels

MULTIBUS interface for multimaster configuration and system expansion

Supported by a complete family of single board computers, memory, digital and analog I/O, peripheral controllers, packaging and software

Alternate Part Number: SBC8605

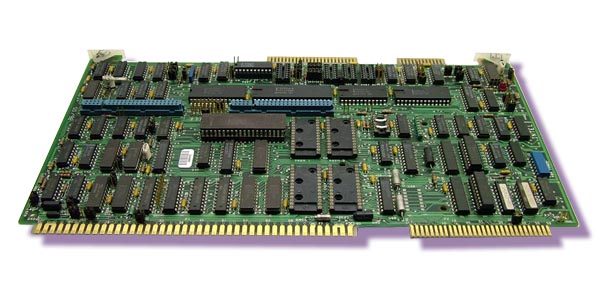

Click on thumbnail for larger image. Call for price.
