Multibus-International

Model: SBC80/24A

Manufactured by: Intel Corporation

Upward Compatible Replacement for SBC80/20-4 Single Board Computer

8085A-2 CPU Operating at 4.8 or 2.4MHz

2 SBC Bus Connectors for SBX Board Expansion

48 Programmable Parallel I/O Lines with Sockets for Interchangeable Line Drivers And Terminators

Programmable Synchronous/Asynchronous RS232 Compatible Serial Interface with Software Selectable Baud Rates

Full Multibus Control Logic for Multimaster Configurations and System Expansion

Two Programmable 16-Bit BCD or Binary Timers/Event Counters

12 Levels of Programmable Interrupt Control

Auxiliary Power Bus, Memory Protect and Power-Fail Interrupt Control Logic Provided for Battery Backup RAM Requirements

8KB of Static Read/Write Memory

Sockets for Up to 32KB of Read Only Memory

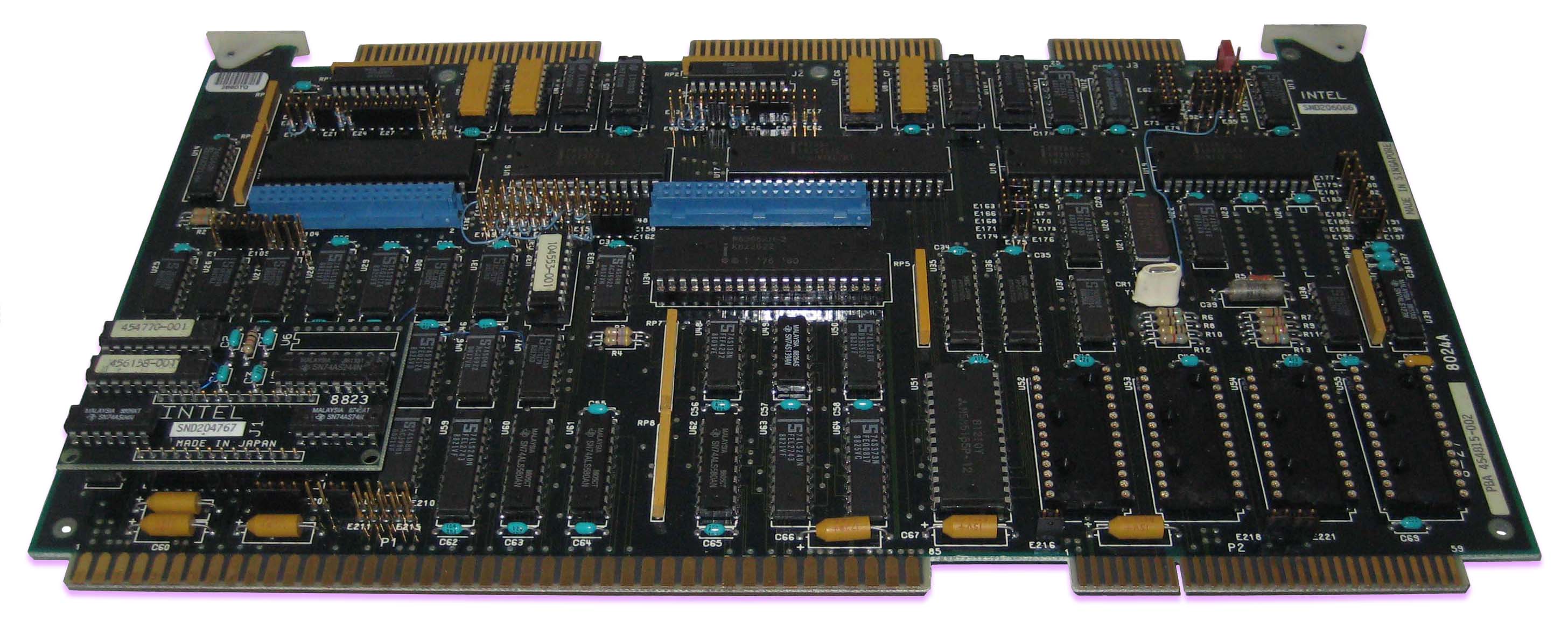

The Intel 80/24A Single Board Computer is a member of Intel's complete line of OEM microcomputer systems.  The CPU, system clock, SBX bus interface, read/write memory, read-only memory sockets, I/O ports and drivers, serial communications interface, priority interrupt logic, and programmable timers all reside on the board.  Full Multibus interface logic is included to offer compatibility with the Intel family of single board computers, expansion memory options, digital and analog I/O expansion boards, and peripheral and communications controllers.

Alternate Part Number: SBC8024A

Click on thumbnail for larger image. Call for price.
