Multibus-International

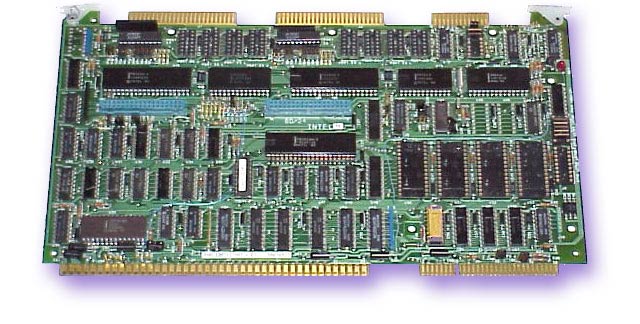

Model: SBC80/24

Manufactured by: Intel Corporation

Upward compatible with SBC80/20-4 single board computer

8085A-2 CPU operating at 4.8 or 2.4MHz

Two iSBX™ bus connectors for iSBX™ Multimodule™ board expansion

4K bytes of static read/write memory expandable on-board to 8K bytes using the SBC301 Multimodule™ board

Sockets for up to 32K bytes of read only memory

48 programmable parallel I/O line with sockets for interchangeable line drivers and terminators

Programmable synchronous/asynchronous RS232C compatible serial interface with software selectable baud rates

Full Multibus control logic for multimaster configurations and systems expansion

Two programmable 16-bit BCD or binary timers/event counters

12 levels of programmable interrupt control

Auxiliary power bus, memory protect, and power-fail interrupt control logic provided for battery backup RAM requirements

Alternate Part Number: SBC8024

Click on thumbnail for larger image. Call for price.
