Multibus-International

Model: SBC80/16D

Manufactured by: Intel Corporation

SBC80/16D, Intel - 8080A-1 CPU, 2.048MHz, 6 JEDEC 24/28 sockets, 2 SBX connectors, 48 Programmable I/O

• 8080A CPU

• Two SBX bus connectors for SBX MULTIMODE board expansion

• Six 28-pin JEDEC compatible sockets for RAM/EPROM/E2PROM hold up to 64KB of memory

• 2K x 8 static RAM in one of the six JEDEC sockets

• Programmable synchronous/asynchronous communications interface with RS232C compatibility

• Single level interrupt with 12 interrupt sources

• 1.04 or 10.4 millisecond timer

• Limited master MULTIBUS interface

The Intel SBC80/16 board is a member of Intel's complete line of OEM microcomputer systems which take full advantage of Intel's LSI technology to provide economical, self-contained computer-based solutions for OEM applications.  The SBC80/16 board is a complete computer system on a single 6.75 x 12.00-inch printed circuit card.  The CPU, system clock, SBX bus interface, read/write memory, memory sockets, I/O ports and drivers, and serial communications interface all reside on the board.  MULTIBUS control logic is included to offer compatibility with the Intel OEM Microcomputer Systems family of memory expansion boards, and peripheral and communication controllers.

Alternate Part Number: SBC8016D

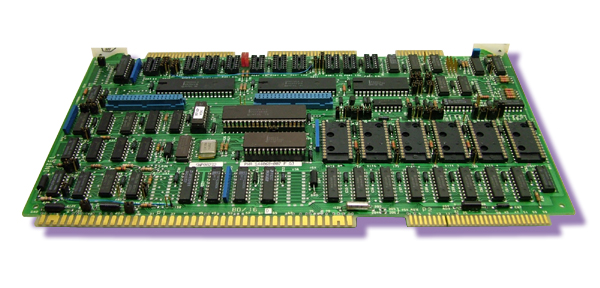

Click on thumbnail for larger image. Call for price.
