Model: SBC732

Manufactured by: Intel Corporation

Intel - SBC732 Analog Combination I/O Board

• SBC 80 Compatable

• Up to 16 Differential/32 Single-Ended Non-Isolated Inputs

• 12-Bit, 28kHz A/D Converter

• 2 to 12-Bit D/A Converter Output Channels

• Memory Mapped I/O

• Voltage or Current Loop Input/Output

• Fault Protection on all Inputs

• Programmable Gain Amplifier

• Single +5V Supply

The iSBC732 Combination Analog Input/Output board is a member of a complete line of Intel iSBC system products. The iSBC732 board is an analog input/output subsystem which, under microprocessor control, performs the basic functions of data acquisition of analog inputs and controlled analog output signals. There are three programmable modes of operation for the acquistion of analog inputs: repetitive single channel input, sequential channel scan input, and random channel input.

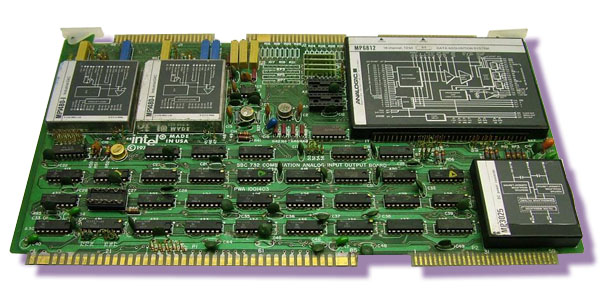

Click on thumbnail for larger image. Call for price.
