Multibus-International

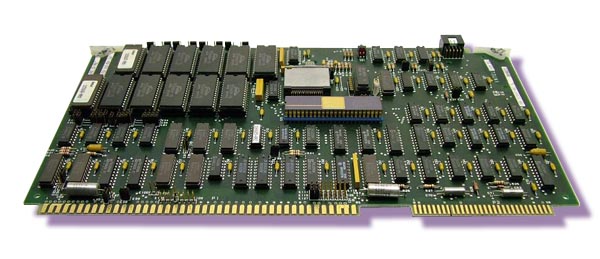

Model: SBC552

Manufactured by: Intel Corporation

• IEEE 802.3 Compatible

• Provides High-Performance Network Front-end Processing for all Multibus I Systems

• Intelligent Controller with an 5MHz, 80186 Processor and 64KB of DRAM memory

• IEEE 802.3 Network port driven by the 82586 LAN Coprocessor

• Can Execute iNA 960/961 Software On-board

• Resident Network Software can be downloaded over the Bus or LAN

• On-Board Diagnostic and Boot Firmware

The SBC552 is a flexible, intelligent communications controller for IEEE 802.3 LANs.  This Network Interface Adapter is dedicated to the network communications tasks within a system allowing the host to spend more time processing user applications.  It can be used to network existing systems and established designs without forcing a redesign of the entire system architecture.  The SBC552 can run with RMX I and III Real-Time operating systems and requires only RMX-Net to communicate with the host.  Other operating systems require iNA 960

Click on thumbnail for larger image. Call for price.
