SBC386/258DM

SKU: INT-SBC386/258DM



Model: SBC386/258DM

Manufactured by: Intel Corporation



  • 16MHz 386™ Microprocessor

  • SBCCSM002 module support

  • Common Command Set (CCS) SCSI peripheral support

  • Asynchronous SCSI to 1.5Mbps, synchronous to 4.0Mbps

  • Dual ended SCSI port

  • Firmware support for BIST, IDX, slave test handler, and downloader

  • 258 Peripheral Communications Interface (258-PCI) firmware

  • 2 MSA EPROMS are included in the shipping container

  • 1/2/4/8MB memory modules are available

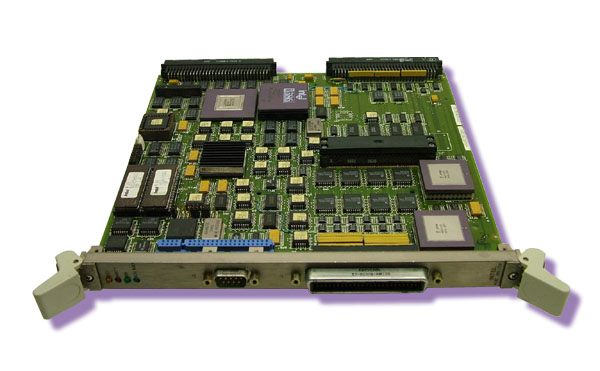

The SBC386/258 is a high performance peripheral controller that combines powerful I/O performance and access to SCSI peripherals for most Multibus II applications.  Minicomputer-level I/O performance is achieved by utilizing the 386 microprocessor and large data cache.  The added power of the 386 processor gives the SBC386/258 the capability of off-loading tasks from other system CPUs as an I/O server.  The board supports communication with up to seven other peripheral adapters and up to 56 possible devices.  Vendor-unique features of peripherals can be accessed using the pass through capability.

Alternate Part Number: SBC386258DM



Click on thumbnail for a larger image. Call for price.
