 SKU: INT-SBC386/116; INT-SBC386/120
Model: SBC386/116 and SBC386/120
Manufactured by: Intel Corporation
High performance 32-bit 386™ processor operating at 16MHz or 20MHz 80387 numerics co-processor providing IEEE 754 floating point instruction set, operating at 16-MHz or 20Mhz 64K byte static RAM cache providing zero wait state reads 1, 2, 4 or 8M bytes of on-board dual-ported dynamic RAM memory with parity error detection, expandable to 16M bytes One RS 232C serial I/O port 82258 DMA controller providing 4 high performance DMA channels 32-Bit Multibus ii parallel system bus (IEEE 1296) interface with full message passing capability 8-, 16-Bit iSBX™ bus (IEEE P959) interface with DMA for I/O expansion Resident firmware to support built-in-self-test (BIST) power –Up diagnostics MULTIBUS II interconnect space for software configurability and diagnostics Alternate Part Numbers: SBC386116 and SBC386120

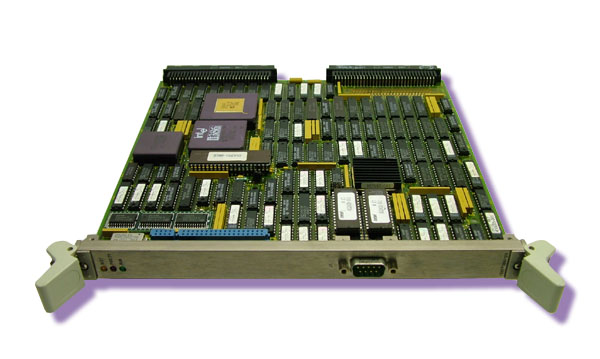

Click on thumbnail for a larger image. Call for price.
|
|||
 |
