SBC188/56

SKU: INT-SBC188/56



Model: SBC188/56

Manufactured by: Intel Corporation





  • SBC Single Board Computer or Intelligent Slave Communications Board

  • 8 Serial Communications Channels, Expandable to 12 Channels using optional SBX354

  • 8MHz 80188 Microprocessor

  • Supports RS232C Interface on 6 channels, RS422A/449 or RS232C Interface Configurable on 2 Channels

  • 7 On-board DMA Channels for Serial I/O, 2 80188 DMA Channels for the SBX Bus

  • 2 SBX Connectors for I/O Expansion

  • 256KB Dual-Ported RAM On-board

  • 2 28-pin JEDEC PROM Sites Expandable to 6 Sites using optional SBC341 for a maximum of 192KB EPROM



The SBC188/56 Advanced Communicating Computer is an intelligent 8 channel single board computer based on an 8MHz 80188 microprocessor.  Acting as a stand-alone CPU or as an intelligent slave for communication expansion, this board provides a high performance, low-cost solution for multi-user system.  The features of the SBC188/56 board are uniquely suited to manage higher-layer protocol requirements needed in today's data communications applications.



Alternate Part Number: SBC18856

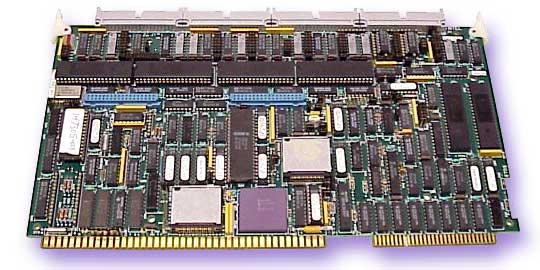

Click on thumbnail for larger image. Call for price.
