 SKU: INT-SBC186/530 Model: SBC186/530
Provides IEEE 802.3/Ethernet compatible networking capability for Multibus II systems Resident firmware to support built-in-self-test (BIST), Initialization and Diagnostic eXecutive (IDX), and host-to-controller software download Four 28-pin JEDEC sites, expandable to 8 sites with SBC341 board for a maximum of 512KB of EPROM One RS232C serial port for use in debug and testing or as a console port Multibus II parallel system bus interface with full message passing capability The SBC186/530 Multibus II Ethernet Controller is a dedicated IEEE 802.3 compatible front-end processor. The board's 8MHz 80186, 512KB DRAM, and host-to-controller software download capability allows the board to off-load LAN communications functions and I/O software processing from one or all of a Multibus II system's host CPU boards.
Alternate Part Number: SBC186530

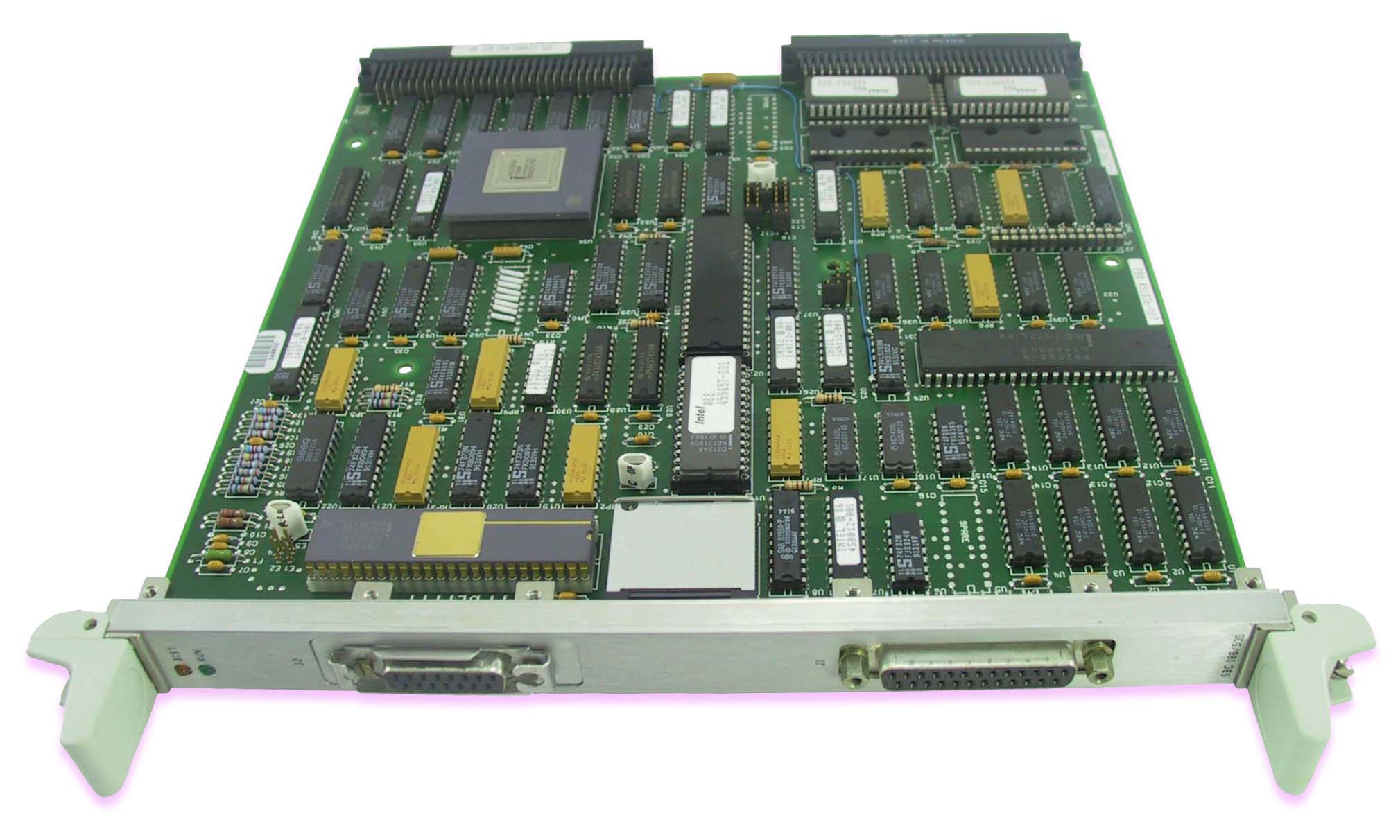

Click on thumbnail for a larger image. Call for price. |
|||
 |
