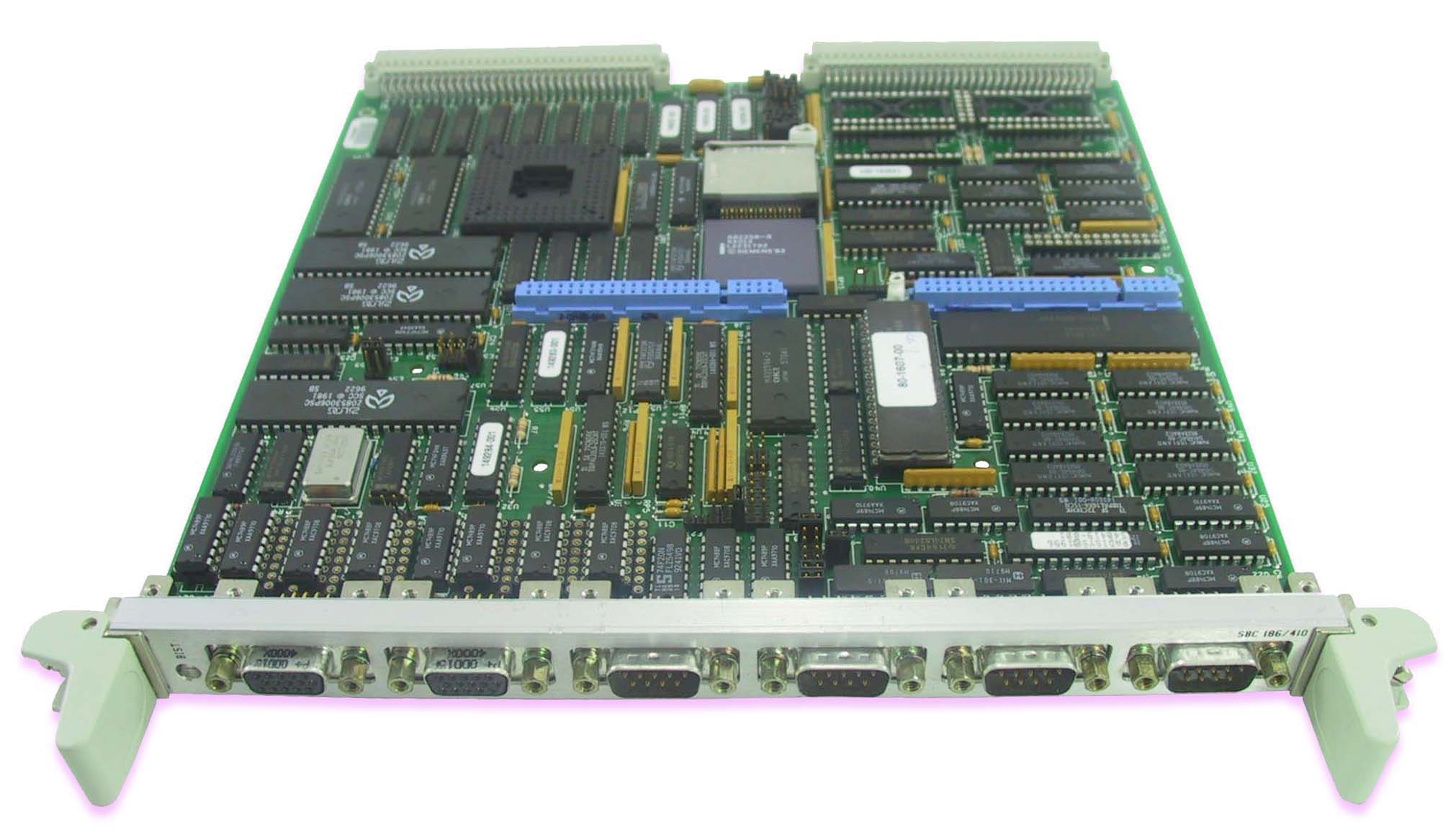

Model: SBC186/410

Manufactured by: Intel Corporation

Multibus II Serial Communications Board

• 8MHz 80C186 Microprocessor

• 6 serial communications channels: 2 RS232C or RS422A, 4 RS232C only; front panel connections

• 82258 DMA controller provides 4 independent DMA channels

• 512KB DRAM provided, 4 28-pin JEDEC sites available for EPROM

• 2 SBX connectors provided for I/O expansion

The SBC186/410 Multibus II serial communications board is an intelligent 6-channel communications processor that addresses the needs of many standard communication applications. The board brings flexibility to the application with its multiple serial channels as well as I/O expansion through the SBX connections.  The board is designed to support serial communication within the system.  The SBC186/410 board supports asynchronous, byte synchronous, and bit-synchronous (HDLC/SDLC) communications on the two full/half duplex RS232C or ES422A channels.  Each serial channel can be individually programmed for different baud rates to allow system configurations with differing terminal types.

Alternate Part Number: SBC186410
