MPI

SKU: INT-MPI



Model: MPI

Manufactured by: Intel Corporation



  • Replier in I/O Space

  • 2KB address on each board

  • 8/16 bus data width agents

  • No application CPU required

  • No support microcontroller required

  • Supports up to 8 local interrupt sources

  • Sends/Receives Broadcast messages

  • Sends/Receives unsolicited messages (without data)

  • Complete arbitration protocol

  • Normal and High Priority modes are supported

  • Interfaces to Intel's 8259A PIC

  • ANSI/IEEE 1296 compliant

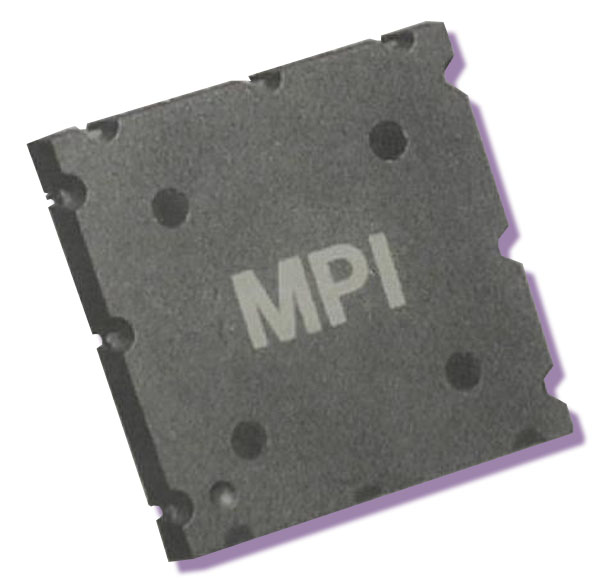

  • 124-pin plastic PGA package



The Multibus II Peripheral Interface, MPI, is a single chip, "replier only" Parallel System Bus interface device.  This 16-bit integrated CMOS interface component is compliant with the IEEE/ANSI 1296 standard and is compatible with other board products using the 92389 Message Passing Coprocessor.  It supports data transfer in I/O space as defined by the IEEE specification.  The MPI is particularly suited to the design of low-cost, non-intelligent boards.  All interface logic, except for five high current buffer drivers, is incorporated, which simplifies and accelerates I/O board design.  The local interface is designed to provide a simple interface to I/O board components.  The MPI also includes configuration registers which are programmed from the PSB to suit a variety of applications.



Click on thumbnail for larger image. Call for price.
