SKU: CON-BX BLP/TBD-00
Model: BLP/TBD-00
Manufactured by: Concurrent Technologies
-
20-Slot Multibus II (IEEE/ANSI 1296) backplane
-
EIA, 19-inch rack standard with provision for slidemounting. Fits 24< rack
-
Heavy duty bus bars for negligible IR drop across card cage under maximum loading
-
Multiple output switching power supply. Jumper selectable 115/240 VAC
-
Certified to UL, CSA, and TUV safety agency requirements
-
High-volume and uniform cooling air flow across all card positions (250+ LFM). Air flow highly independent of adjacent equipment
-
Front panel reset switch and power supply activity indicator
-
Built-in P2 power connection points
-
P2 backplane at Slot 0 provides "Reset" Remote Diagnostics Serial Port Interface (RSPI) functions and I/O connections
-
Unrestricted area behind P2 backplane for user I/O configuration
The Concurrent Technology BX BLP/TBD-00 is Concurrent's answer to Intel's CH541. Like the CH541 it provides a basic platform for the integration of large capacity systems. The BX BLP/TBD-00's modular packaging allows for integration into standard 19-inch rack-mount cabinets and fits in a 24-inch deep rack. Each BX BLP/TBD-00 chassis is compactly built, ruggedly constructed, and features Concurrent Technology's high quality and high reliability.

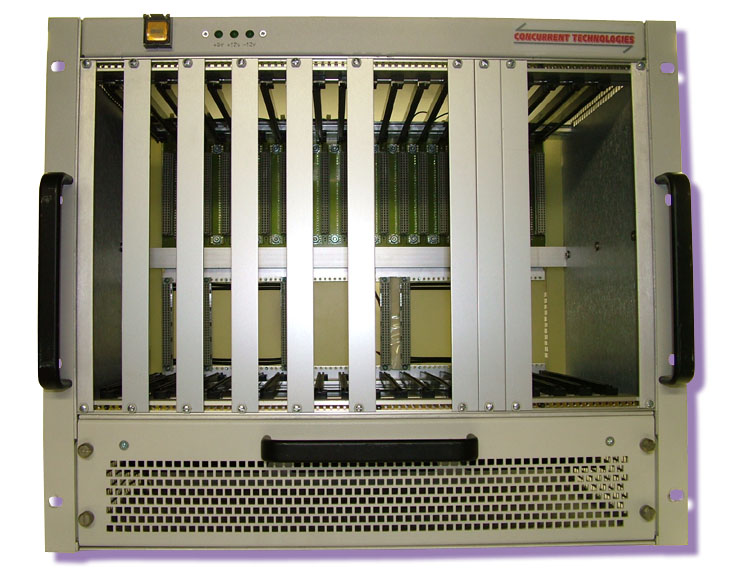

Click on thumbnail for larger image. Call for price.
